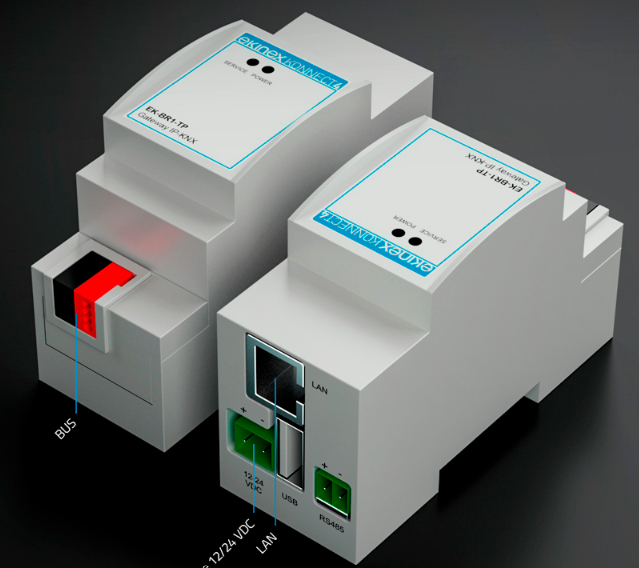

Advanced IP-KNX interface Konnect4 for KNX and/or Control4 installations
Description
Native integration in Control4 of Ekinex devices and configuration in Composer Pro
The Ekinex device range is now compatible with the Control4 ecosystem. In Composer Pro it is possible to configure Ekinex products and integrate them into a Control4 automation system, even making them interact with third-party devices.
A single driver for all our wall-mount devices
All Ekinex wall-mount devices with thermostats are programmable with our Composer Pro driver, which automatically recognizes the model and allows the operating parameters to be set.
All the programming done in Composer Pro
No Need for ETS: all programming can be done directly within Composer Pro!
Thanks to SDDP discovery, the Konnect 4 gateway and all devices connected to the BUS are automatically detected and added to the project. The supplied drivers allow you to download the configuration directly from Composer Pro, and offer all the connections necessary to realize the functions you want.
Advantages
Flexibility of combining EKINEX and CONTROL4 products in the same installation.
Very easy cabling for installers.
Enhancement of the Control4 proposal with design-oriented products.
The same devices can be used by KNX professionals (with ETS) and by non-experts directly in Composer Pro.
Maximum reliability being the solution based on KNX standard.
Win-win product offering for all markets, by fitting the different needs, styles and expectations of installers and end users.
