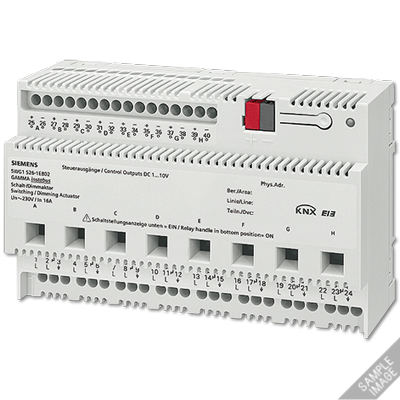

N 526E02 – KNX switch/dimming actuator, 8 x AC 230 V, 16 A, 1–10 V, UL standard

for switching and dimming of eight mutually independent groups (channels) of fluorescent lamps with dimmable electronic control gear (ECG),

with 8 control voltage outputs DC 1-10V, control power min. 60 OSRAM ECG dynamic each, with 8 switching outputs (relay contacts) for AC 230 V, 50/60 Hz, 16 A at p.f. = 1, each of them for connection of min. 30 OSRAM ECG dynamic for 58 W fluorescent lamps,
with slide switch per relay output for manual operation and switch position indication,
with selection between identical or individual configuration of all channels,
with command objects for each actuator channel for switching On/ Off, dimming brighter/darker and set/value,
with one 1-bit and one 8-bit-status object (switching state and dimming value) per output,
with per channel configurable time-limited activation of the lighting during night mode (base lighting),
with warning 30 seconds prior to imminent switch Off by dimming to 50 % of the previous dimming value for each channel with time-limited operation,
with switching On or Off of a channel by dimming brighter/darker,
with configurable dimming value upon switching On,
with jumping or dimming to a new dimming value,
with configurable dimming time from 0% to 100%,
with integrated 8 bit scene control and assignment of each output to up to 8 scenes,
with transmission of status objects on request, cyclically and/or automatically after changes,
with configurable behaviour on bus voltage failure and recovery,
with bus-powered electronics,
with integrated bus coupling unit,
bus connection via bus terminal and contact system to data rail, for mounting on DIN rail EN 60715-TH35-7.5.
Dimensions: Device for DIN-rail mounting in N-system design: 8 MW wide (1 MW = 18 mm)
