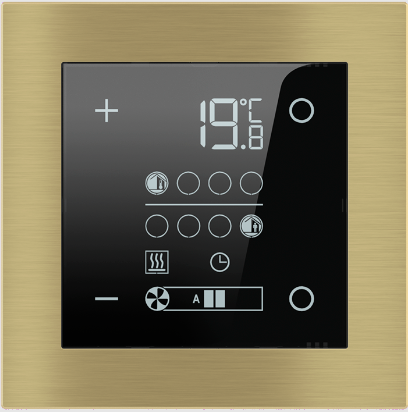

Room temperature controller 20venti Series

The Ekinex® room temperature controller of 71 series regulates independently the temperature of a room or a zone. In combination with one or more KNX actuators, the room temperature controller is able to control the heating and cooling emission of a series of terminal units for the thermal exchange (such as radiators, fan-coils, floor and ceiling radiant panels, etc.). The device is provided with a LCD-Display with adjustable backlight, and a sensor for temperature measuring. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Technical data

• 30 Vdc power supply by KNX bus
• Current consumption from bus < 13 mA

Delivery

Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.

Accessories

• The following accessories are available to be ordered separately:
• square and double frame Form or Flank version
• square, double and triple plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square mounting box (fixing holes 60 mm apart)
