Ekinex

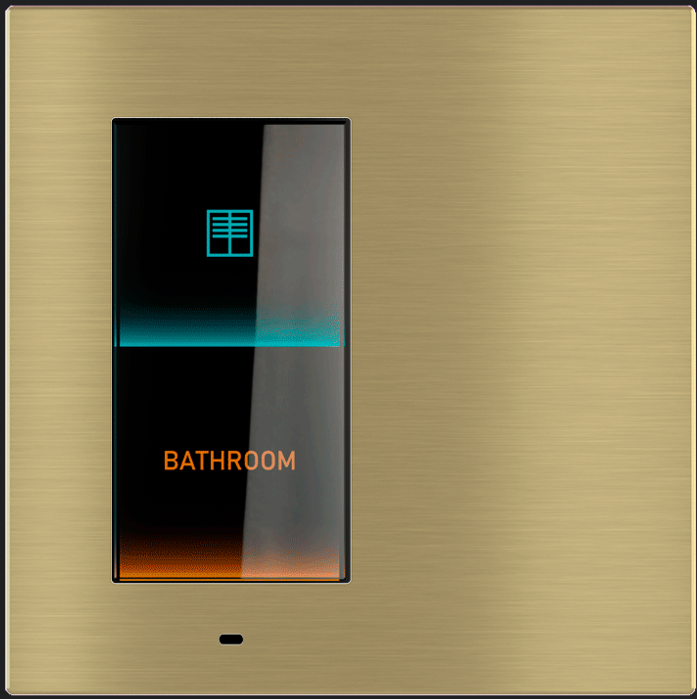

“Virtual” pushbutton Signum
Description “Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button can be customized via a dedicated app. it is possible to modify certain attributes of each button even after installation, e.g
Description
Description
“Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button can be customized via a dedicated app. it is possible to modify certain attributes of each button even after installation, e.g. position, symbols and lettering.
Technical data
- 30 Vdc power supply via KNX bus
- Stand-by current consumption: 8 mA @30Vdc / max: 35 mA @30Vdc
- Wall mounting on round or square box
- IP20 degree of protection (installed)
- Plastic housing
- Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2)
- Pollution degree 2 (according to IEC 60664-1)
- Dimensions: 83 x 77 x 37 mm
- Operating temperature: 5... + 45°C
- Storage temperature: 25... + 55°C
- Transport temperature: 25... + 70°C
- Relative humidity: 95% non-condensing
Delivery
Delivery includes a terminal block for connection to the bus, a plastic adapter, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart), two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
- square plate of the Deep or Surface version with 30 x 60 mm window
| Code | Type |
| EK-EV3-TP | Signum Virtual Pushbutton |
| EK-EV3-TP-TER | Signum Virtual Pushbutton with Thermostat |
| EK-EV3-TP-H | Signum Virtual Pushbutton with Humidity Sensor (COMING SOON) |
| Features | |
| EK-EV2-V1-TER | Voucher to enable graphic display of thermostat function |
| EK-EV2-V1-AUD | Voucher to enable the graphic display of the audio function |
