N 512C01 - KNX load switch, 8 x AC 120/277/347 V, 20 A, C-load (cUL listed)

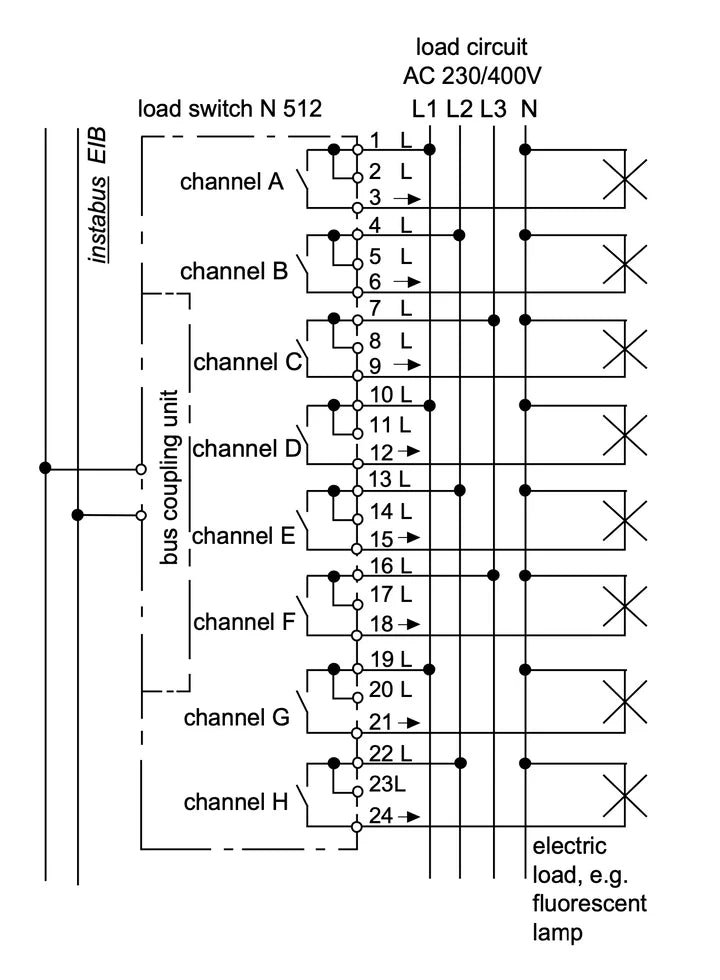

N 512C01 - KNX load switch, 8 x AC 120/277/347 V, 20 A, C-load (cUL listed) - Image 2
Siemens

N 512C01 – KNX load switch, 8 x AC 120/277/347 V, 20 A, C-load (cUL listed)

SKU: 5WG15121CB01
Write a review
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

KNX load switch-5WG1 512-1CB01
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (702) 344-6214

N 512C01 - KNX load switch, 8 x AC 120/277/347 V, 20 A, C-load (cUL listed)

DIN-rail mounted device for the KNX lighting control panel
eight outputs to switch eight separate groups of electric devices
provided by bus (no additional power supply necessary)
The outputs may be operated manually via slide switches.
Maximum loads per output
20 A @ 347 Vac (General Purpose)
20 A @ 347 Vac Ballast (200μF max.)
20 A @ 277 Vac (General Purpose)
20 A @ 277 Vac Ballast (200μF max.)
1,5 HP @ 120 Vac
3 HP @ 277 Vac
