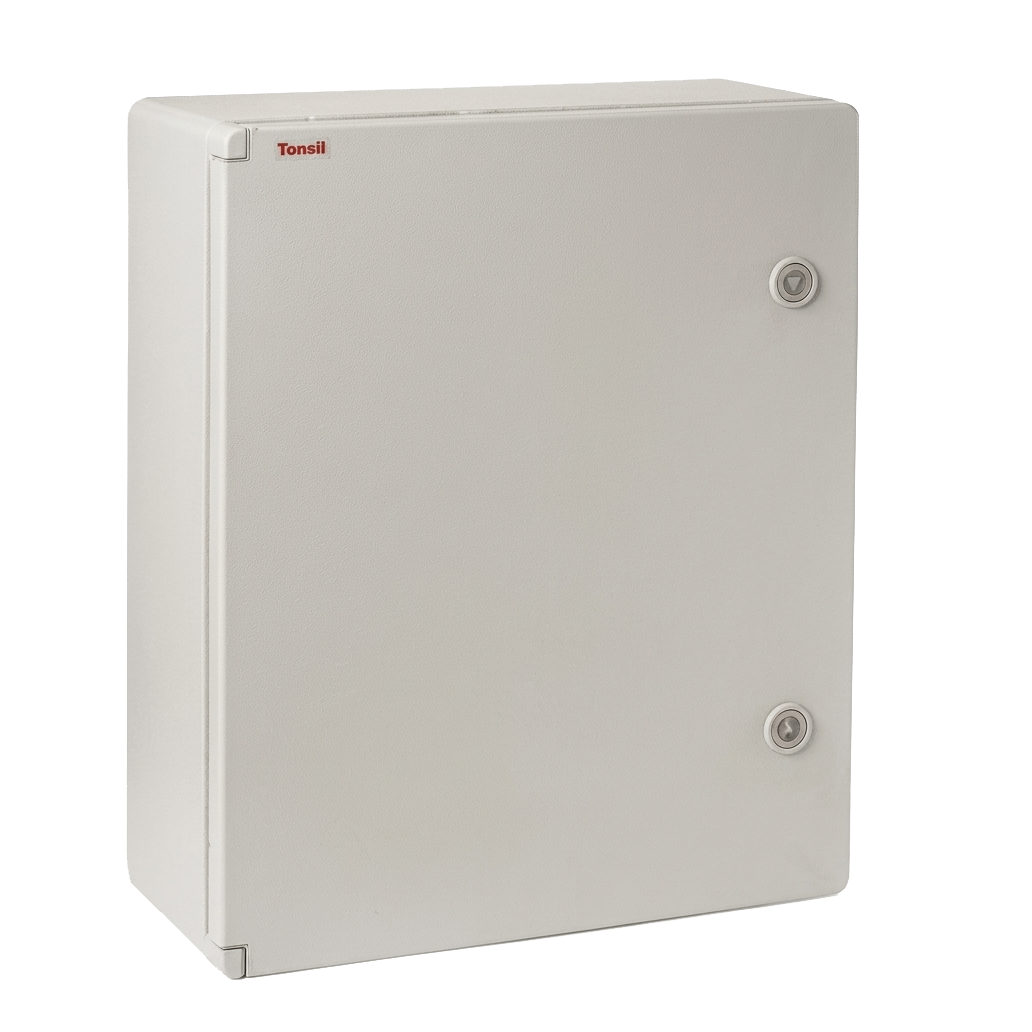

MagnaUL NEMA 4X Polycarbonate Enclosure (11.8” x 15.7” x 6.45”, 5.9 Lbs) – 39134UL+I39134

MagnaUL NEMA 4X Polycarbonate enclosure, for indoor and outdoor installations.

Description

· NEMA 4X

· Polycarbonate

· Intertek ETL Listed 5013023

· Protected against corrosion, salinity, UV, dirt, dust, and water.

· Halogen free, IK08 Impact resistance

· Isolation Voltage 1000V AC / 1500V DC

Includes:

· Galvanized Metal Plate

· Metal Plate Supports

· Caps

· Triangular Key

· Metal locks and keys available custom by request

External Dimensions - 11.8” x 15.7” x 6.45”

Internal Dimensions – 9.8" x 13.9" x 4.7" (w/ plate)

The MagnaUL series NEMA 4X Polycarbonate Enclosure made by Famatel USA is ideal for outdoor and indoor installations. Designed for industrial and residential applications, it protects your installations against external elements such as splashing water, dust, mud, and more. Comparable to polyester and stainless steel, this enclosure has been certified by Intertek under NEMA standards.

The lock system by triangular key increases safety for the elements within the cabinet. Designed for outdoor use, to avoid corrosion in your assemblies, and to protect the housed components within. Materials are Polycarbonate + Galvanized Back Plate Inside.

This cabinet has been in the market for over 10 years proving its endurance in the harshest environments such as coastal areas.

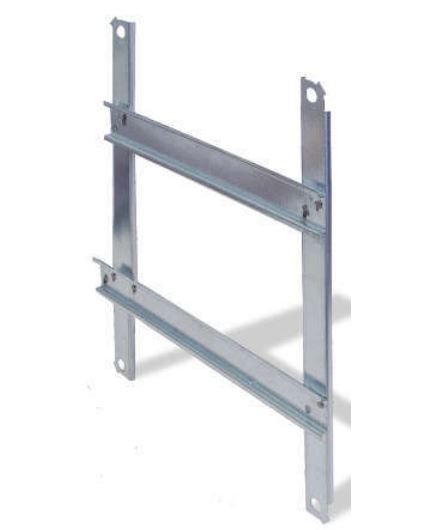

Optional 22 module DIN Rail add-on
