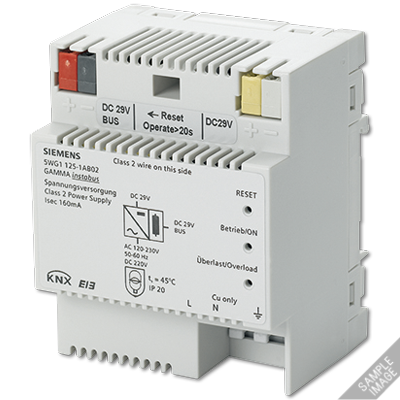

N 125/02 - KNX power supply, DC 29 V, 160 mA, additional unchoked output
Siemens

N 125/02 – KNX power supply, DC 29 V, 160 mA, additional unchoked output

SKU: 5WG1-125-1AB02
Write a review
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

KNX power supply unit, 160 mA-5WG1 125-1AB02
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (702) 344-6214

N 125/02 - KNX power supply, DC 29 V, 160 mA, additional unchoked output

with integrated choke,

rated operational voltage AC 120...230 V, 50...60 Hz, DC 220 V,
output voltage 29 V DC,
output current 160 mA,
with additional non-choke-protected output for 29 V DC for supply of a second bus line via an external choke N120,
with connection of choke-protected output voltage via a contact system for data rails and via a plug-in extra-low voltage terminal or bus terminal,
with connection of the non-choke-protected output voltage via a plug-in extra-low voltage terminal,
for mounting on DIN rail EN 60715-TH35-7.5
box with 4 SU (1 SU = 18 mm)
