Siemens
Lighting Control Enclosure, 20 x 20, 2 x 20 SU

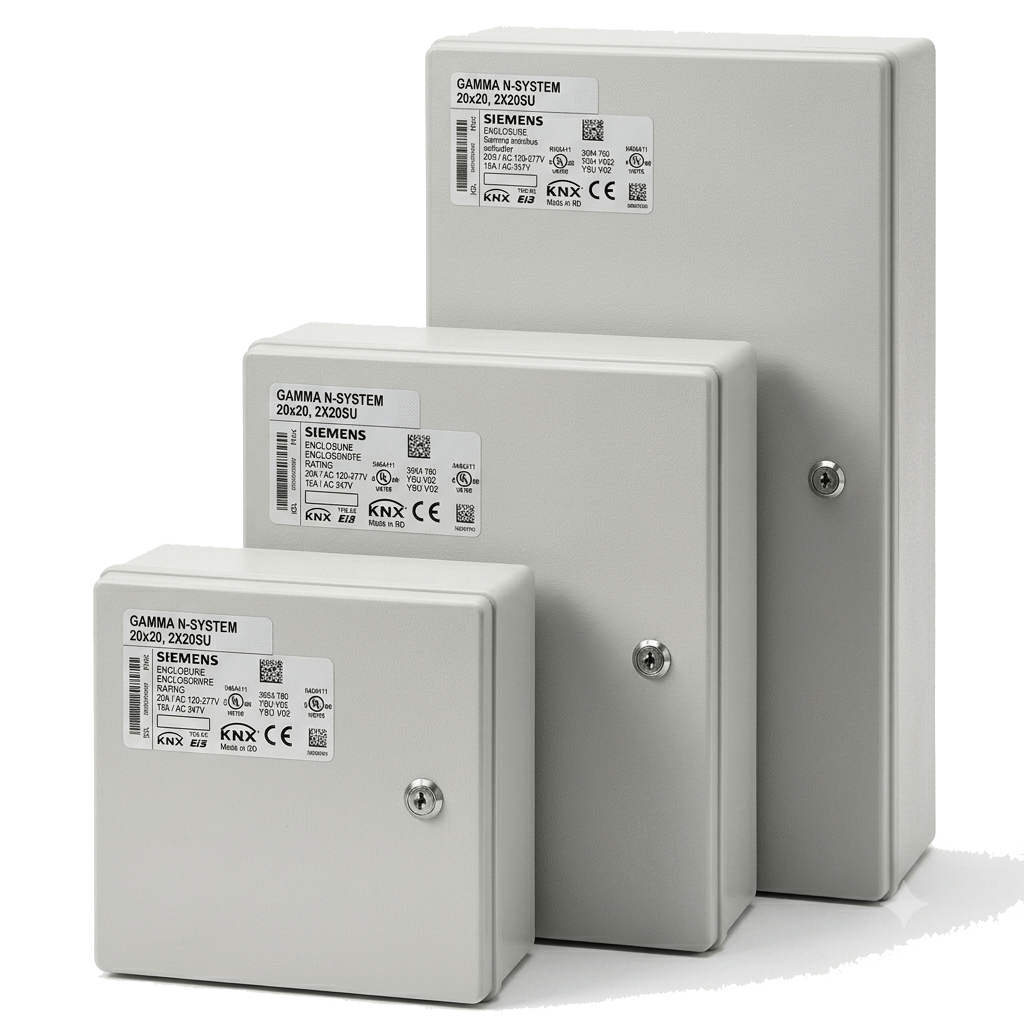

Lighting Control Enclosures
Description
The Siemens Industry Gamma Lighting Control Enclosures support Gamma Lighting system components and other panel-mounted devices that snap into DIN rails.
- Three sizes are available to match installation needs.
- Sturdy construction accommodates secure conduit fittings and protects components against incidental contact and falling dirt.

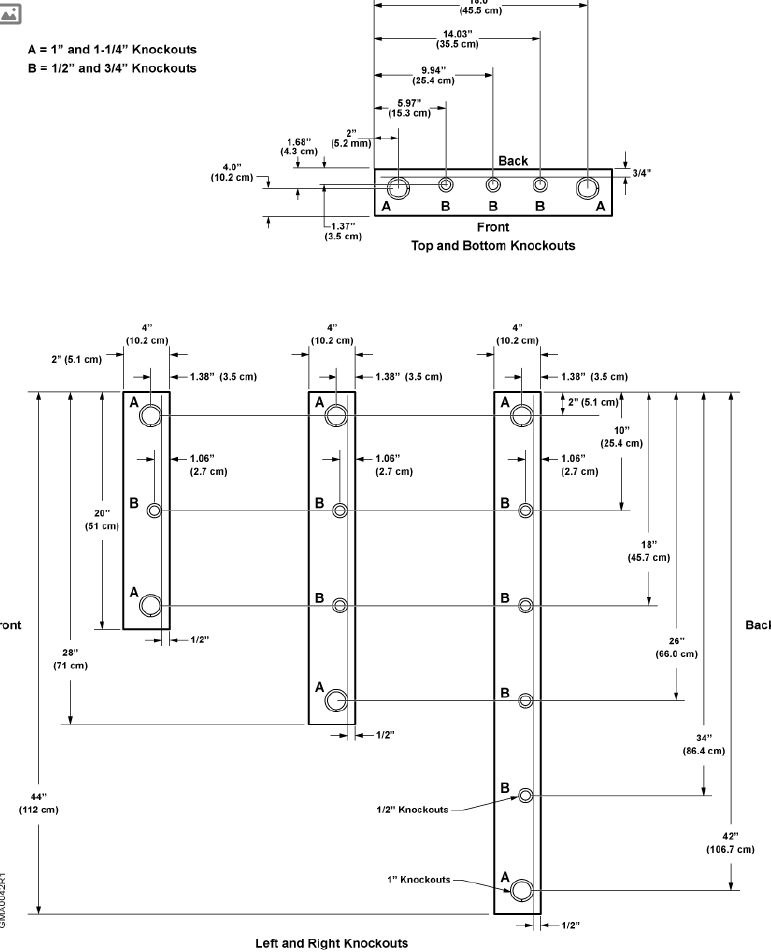

- Multiple knockouts along top, sides and bottom.
- Spacious interior for easy routing and termination of wiring.

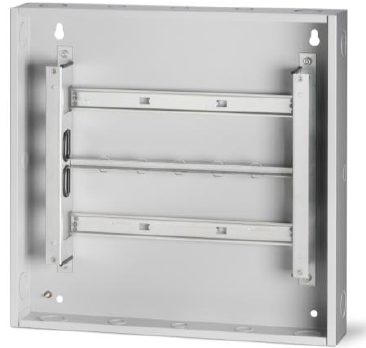

- Pre-installed DIN rails (EN607015) for mounting of components. Each DIN rail accommodates 20 MW (Gamma N-system module widths).
- Wire barriers are pre-installed between each set of DIN rails to easily maintain wire separation.
- A Data Rail 190/32 (with integrated connector, 324 mm) (5WG1 190-8AB32), which is sold separately, distributes KNX bus power and communications to 17 module widths (MW) of N-System devices that only have a data rail connector.

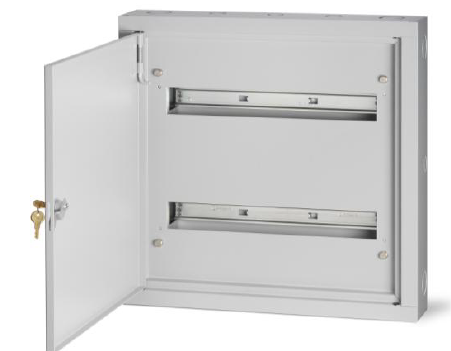

- A removable dead front holds a removable/reversible door with a documentation pouch.
- UL and cUL Certified NEMA Type 1 Industrial Control Enclosure.
The following table provides ordering information.
| Description | Product Number |
| Gamma Lighting Control 20" (51 cm) Enclosure | LCC-2020-MV |
| Gamma Lighting Control 28" (71 cm) Enclosure | LCC-2028-MV |
| Gamma Lighting Control 44" (112 cm) Enclosure | LCC-2044-MV |
| Description | Document ID: |
| Gamma Lighting Control Enclosures Installation Instructions | click here for instructions A6V10425806 |

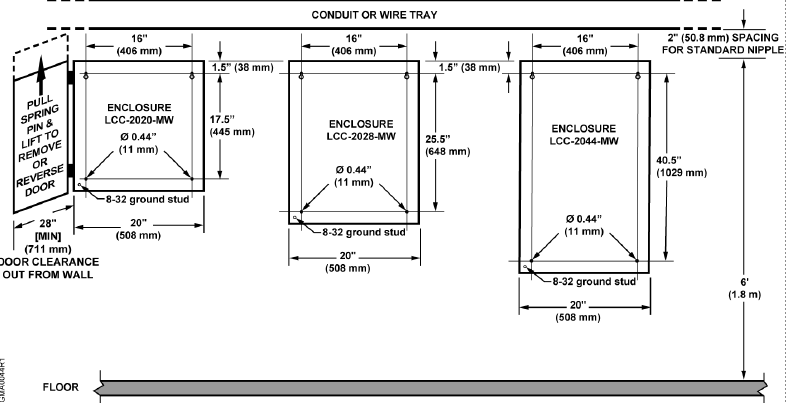

| LCC-2020-MV | LCC-2028-MV | LCC-2044-MV | |
| Height | 20" (51 cm) | 28" (71 cm) | 44" (112 cm) |
| Width | 20" (51 cm) | 20" (51 cm) | 20" (51 cm) |
| Depth | 4" (10 cm) | 4" (10 cm) | 4" (10 cm) |
| DIN Rails a, b | 2 | 3 | 5 |
|
a) Each DIN rail accommodates 20 MW (Gamma N-system module widths). 1 MW = 0.71" (18 mm).
b) The top DIN rail in each enclosure is commonly reserved for low-voltage modules. If no low voltage modules exist in the enclosure, the top DIN rail may be used for line voltage modules.
|
