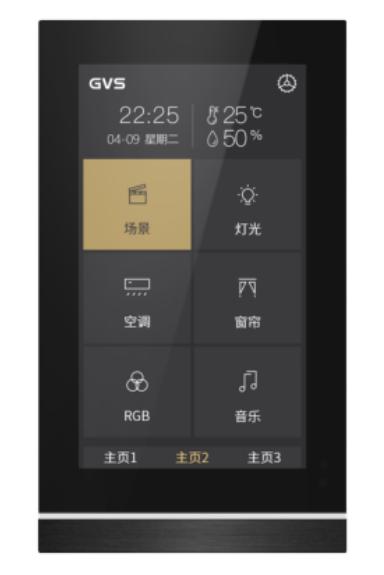

KNX Smart Touch V50s 5″ Black

KNX Smart Touch V50s, Black

• 5" IPS touch panel, resolution 480*854, Out-of-Wall thickness:11.5mm, aluminum faceplate, built-in temperature, proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages(5 basic+10 advance) including switch,dimming, shutter, scene control, value sending, RGB, RGBW,RGBCW,Color Temp. control, HVAC, AC,floor heating, ventilation, audio control, energy metering, air quality display. Max.16 timing(weekly timer can be set on screen) , 8 group group, 8 logic functions, HCL, alarm function. Support icon customization by SD card. Support 12 languages(can also choose on screen) Power: KNX Bus & Auxiliary; Consumption: bus 4.5mA & Auxiliary 125mA Installation: Fits in Chinese 86*86mm, British 70*70mm, German Round (Ø 68mm), Swiss/Australian /US wall boxes. Color option: Black/White

GVS article CHTF-5.0/15.5.21. Size Vertical: | 86 x 148.8 x 32.5 | Horizontal: | 148.8 x 86 x 32.5 mm. Mounts in a European round flush box (Kaiser, 60 mm screw spacing).

Manual and ETS application: GVS product page.

Downloads: GVS manual (PDF), ETS application for KNX programming (ZIP)
