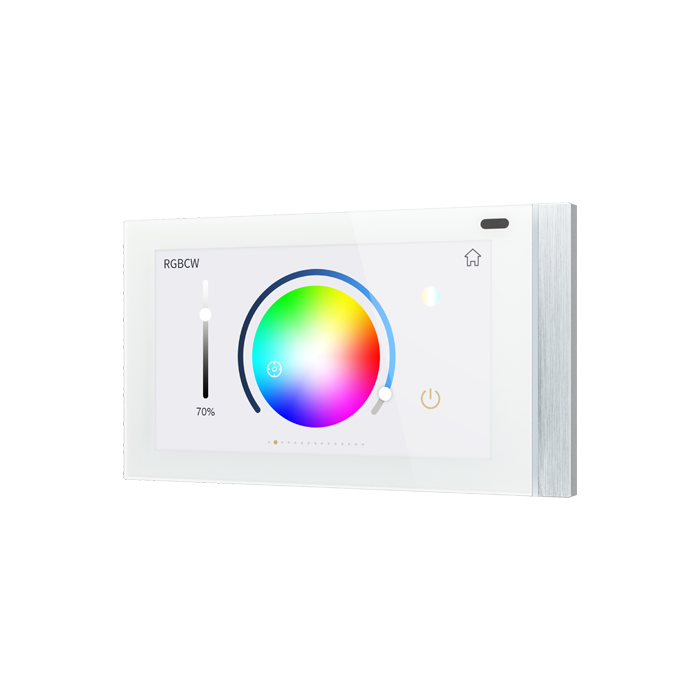

KNX Smart Touch Panel V50s
5″ IPS touch panel, resolution 480*854, aluminum faceplate, built-in temperature & proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages including switch, dimming, shutter, scene control, value sending, RGB,
Description
5" IPS touch panel, resolution 480*854, aluminum faceplate, built-in temperature & proximity sensor, vertical/horizontal adjustable. Full KNX functions: 15 control pages including switch, dimming, shutter, scene control, value sending, RGB, RGBW, RGBCW, Color Temp. control, HVAC, AC, floor heating, ventilation, audio control, energy metering, air quality display. Max.16 timing , 8 group event, 8 logic functions, HCL function. Support icon customization by SD card. Installation: wall mounted, fits in 86*86mm, German 60mm, Swiss/Australian /US standard wall
Size: 86 x 148.8 x 11.5mm
Bus voltage: 21-30V DC, via KNX bus
Bus current: 6mA/24V DC, 5mA/30V DC
Bus consumption: <150mW
Voltage: 24-30V DC
Consumption: <2.5W
Operation: –5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%,except for dewing
Installation: Wall-mounted installation,
install the metal plate onto the 80 or 86
junction box firstly, and then install the
device into metal plate.
Related products
-
Zennio
DALI BOX Broadcast 6CH v2 KNX-DALI Broadcast Interface for up to 6 channels with up to 64 ballasts each
KNX-DALI broadcast interface module for DIN rail mounting (4.5 units). It incorporates 6 channels controlled via... -
Ekinex
4-fold pushbutton (left) with backlit text/symbols and proximity sensor
Description The Ekinex® 20venti series 4-fold pushbutton is used for on/off control of utility devices, dimming... -
Siemens
N 148/12 – KNX USB Interface Din Rail mounting device-5WG11481AB12
The KNX USB Interface is a data interface between a PC or laptop and the KNX installation bus. It can... -
CORE
Eclipse Room Controller 4″
Eclipse room controller is designed to be the most exclusive touch panel for rooms. Its high-quality... -
Siemens
N 512C01 – KNX Load switch, 8 x AC 120 V / AC 277 V / AC 347 V‚ 20 A, C load (cUL listed)
KNX load switch-5WG1 512-1CB01 -
Zennio
ALLinBOX 1612 v3 Multifunction device with power supply, KNX-IP Interface, 16 outputs, 12 inputs and logical module
The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a... -
Siemens
N 125/22 – KNX Power supply unit DC 29 V, 640 mA with additional unchoked output, N 125/22
KNX power supply unit, 640mA-5WG1 125-1AB22 -
Ekinex
Advanced IP-KNX interface Konnect4 for KNX and/or Control4 installations
Ekinex Konnect4 Native integration in Control4 of Ekinex devices and configuration in Composer Pro The Ekinex... -
Ekinex
“Virtual” pushbutton Signum
Description “Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button... -
GVS

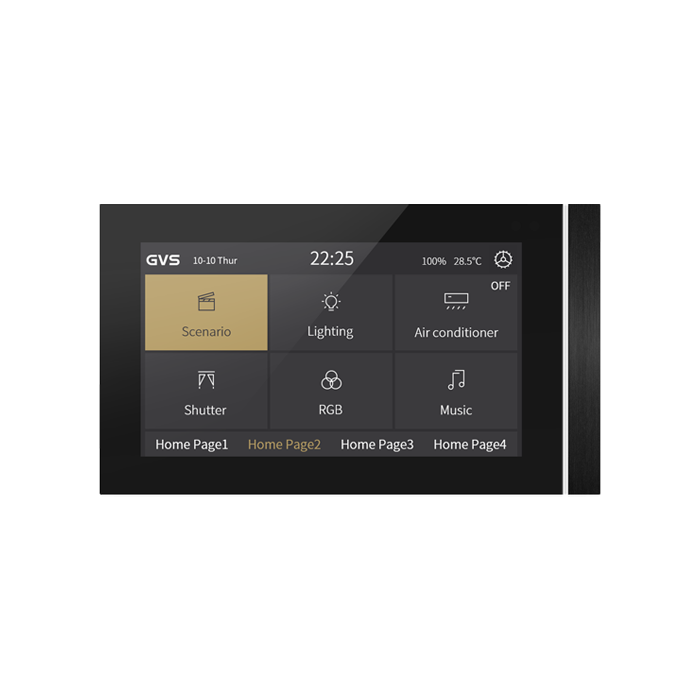

KNX Smart Touch Panel KNX Smart Touch S7
