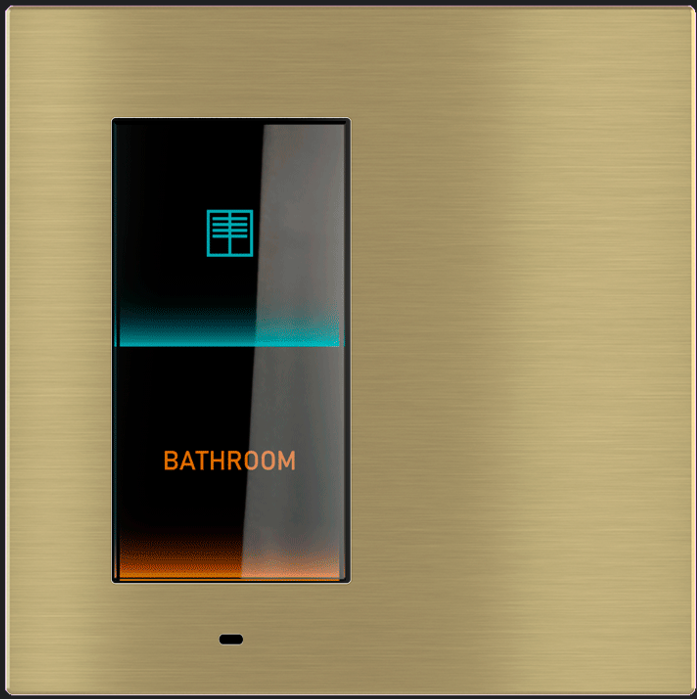

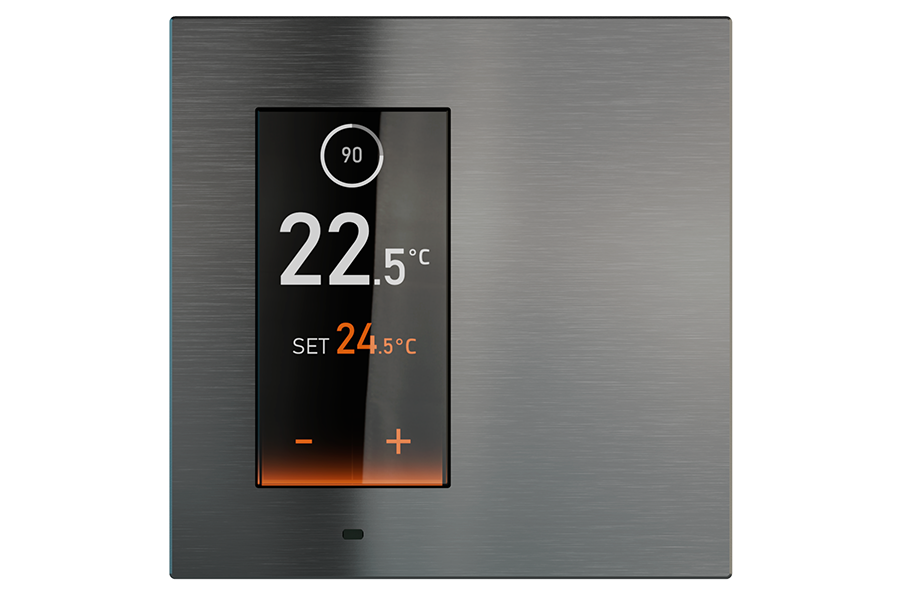

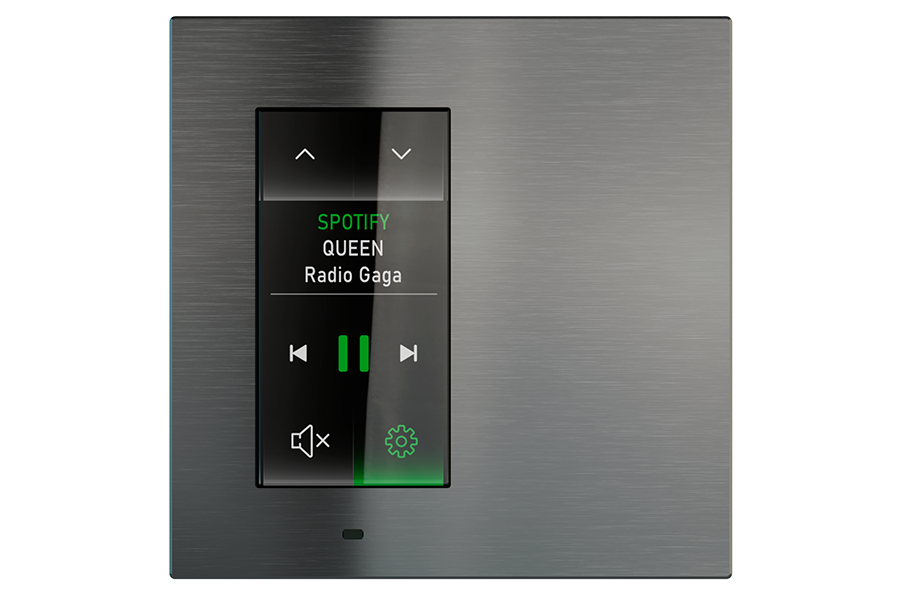

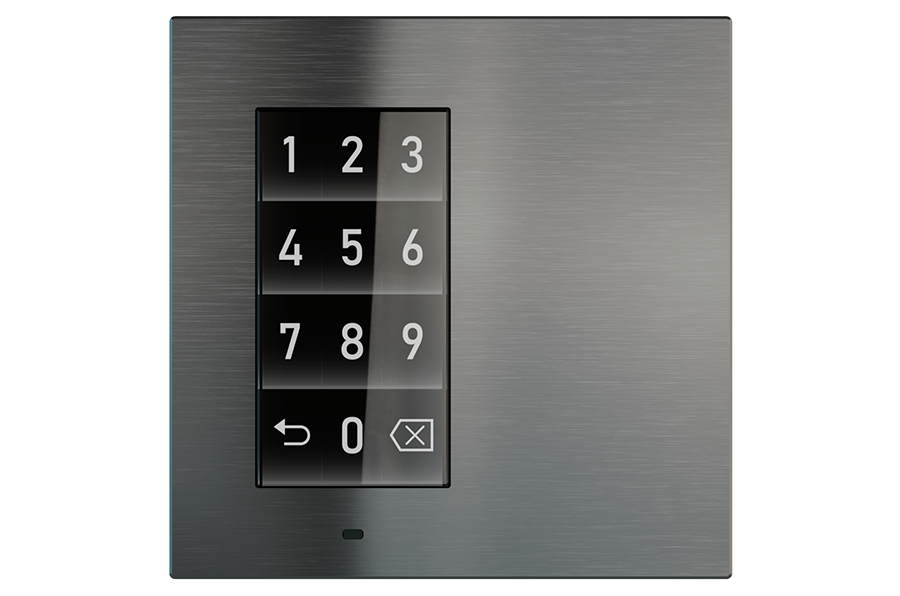

“Virtual” pushbutton Signum

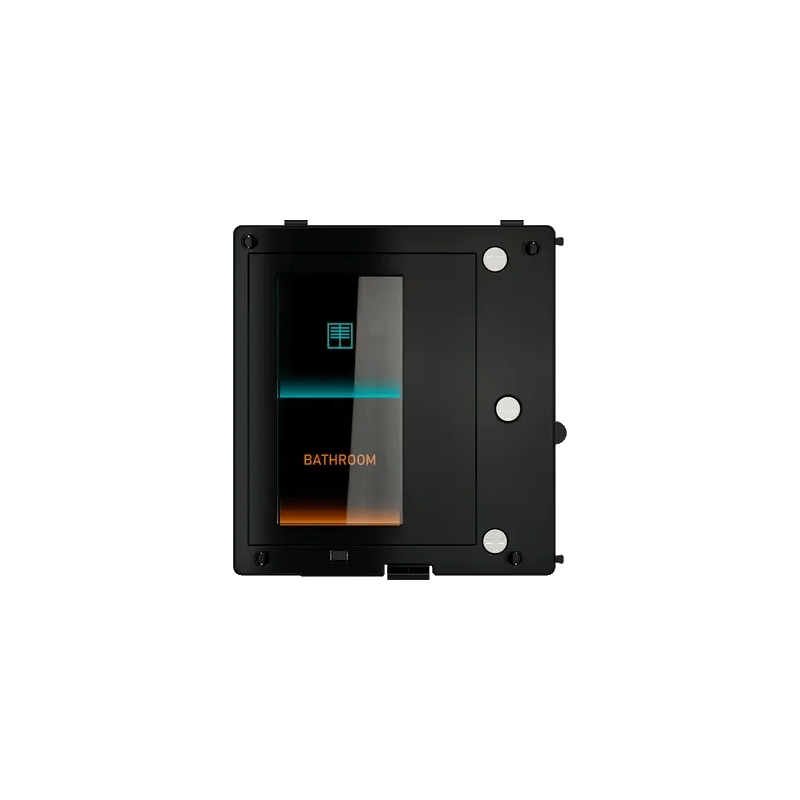

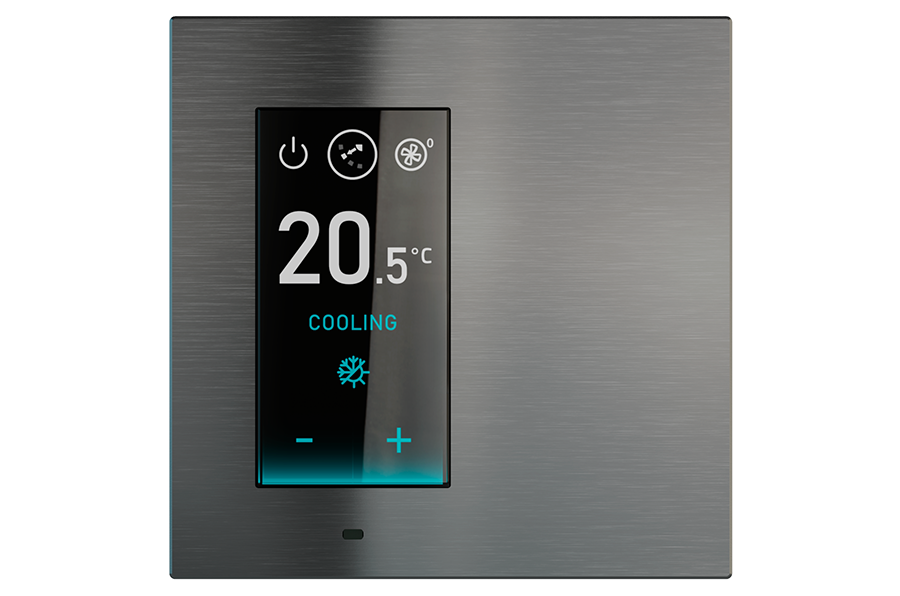

“Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button can be customized via a dedicated app. it is possible to modify certain attributes of each button even after installation, e.g. position, symbols and lettering.

Technical data

• 30 Vdc power supply via KNX bus
• Stand-by current consumption: 8 mA @30Vdc / max: 35 mA @30Vdc
• Wall mounting on round or square box
• IP20 degree of protection (installed)
• Plastic housing
• Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Dimensions: 83 x 77 x 37 mm
• Operating temperature: 5... + 45°C
• Storage temperature: 25... + 55°C
• Transport temperature: 25... + 70°C
• Relative humidity: 95% non-condensing

Delivery

Delivery includes a terminal block for connection to the bus, a plastic adapter, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart), two pairs of fixing screws.

Accessories

• square plate of the Deep or Surface version with 30 x 60 mm window
