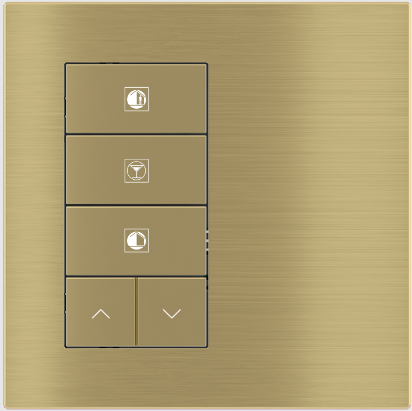

5-fold pushbutton with backlit text/symbols and proximity sensor
Description The Ekinex® 20venti series 5-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated
Description
The Ekinex® 20venti series 5-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. RGB LED for each rocker. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box.
Technical data
- 30 Vdc power supply by KNX bus
- Current consumption from bus < 17 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
- 3 rectangular 30 x 15 mm plastic rockers with or without backlit text/symbol and 1 rectangular 30 x 15 mm plastic rockers for adjustments
- square plate of the Deep and Surface version with 30 x 60 mm or 60 x 60 mm window
- a plastic adapter
- a metal support for installation onto round or square mounting box (fixing holes 60 mm apart)
- 5 fold version (possibility to configure up to 5 independent functions including 2 functions for adjustments)
- RGB LED for each freely programmable rocker
- Integrated temperature sensor
- Integrated proximity sensor
- Room thermostat function
- Plastic casing
- Connection to bus line with KNX terminal block
- Wall-mounting installation on round or square wall box
- IP20 protection degree (installed)
