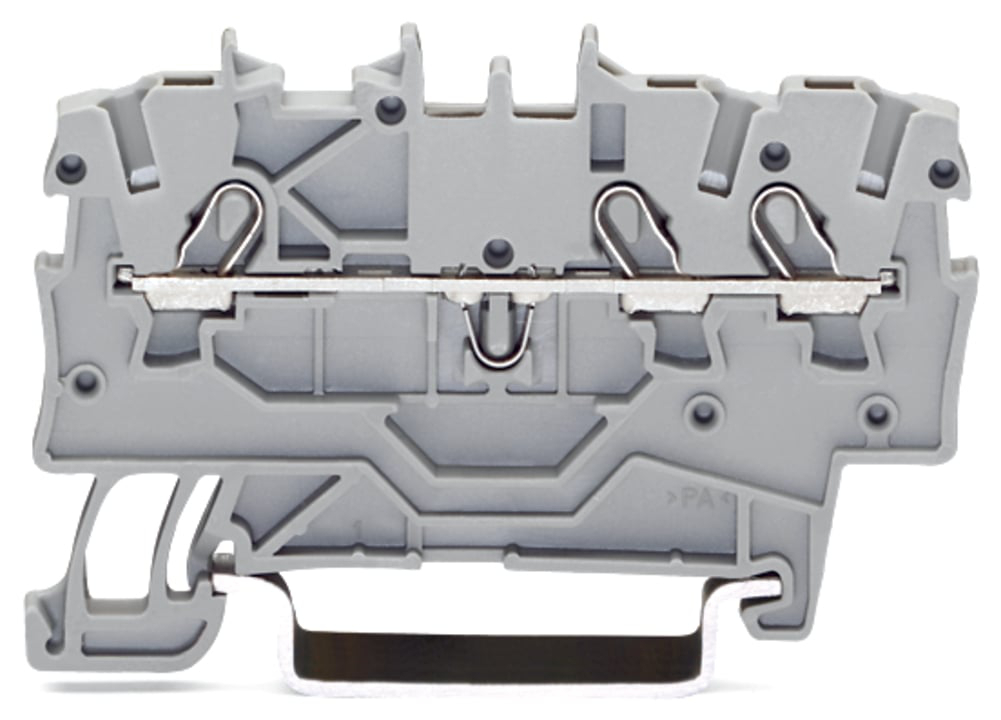

WAGO 2000-1301 3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray
3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray
Lead Time: 10-14 Days
Got questions?
Feel free to get in touch
Ask an expert!
WAGO 2000-1301 3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray
3-conductor through terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; gray

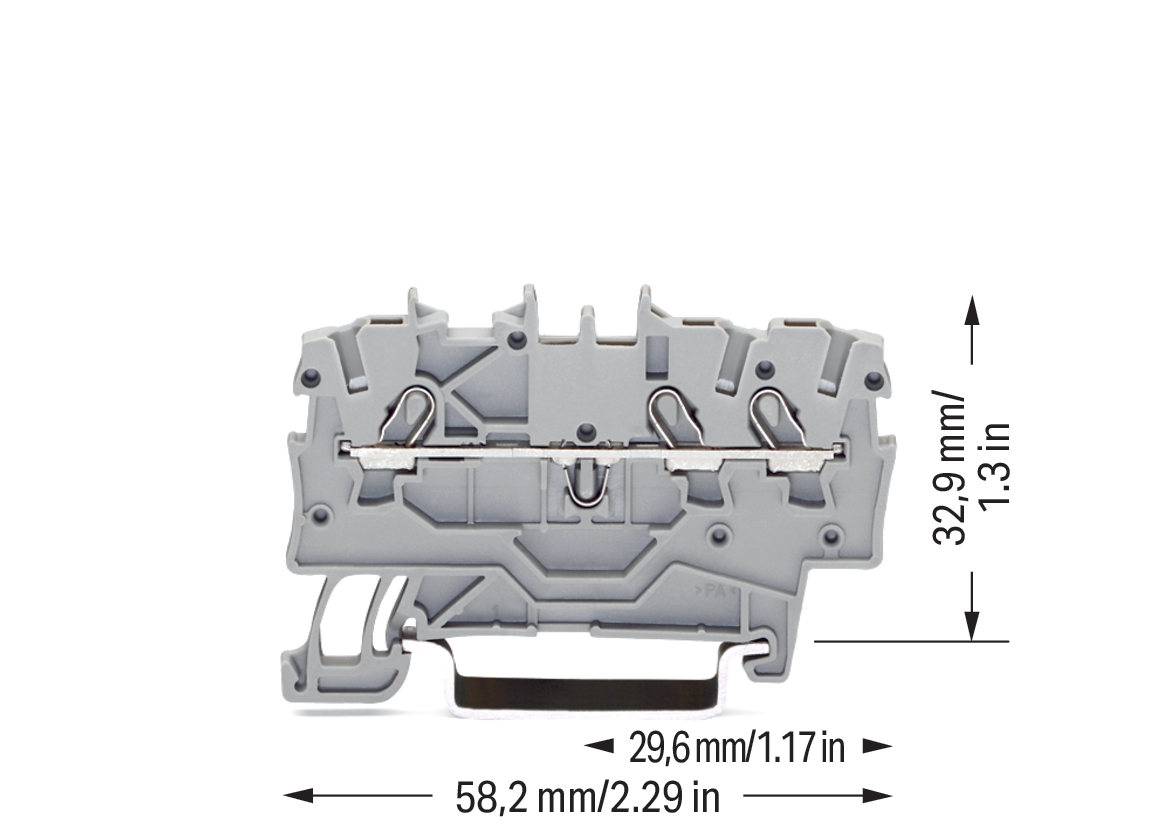

Technical information
| Width | 3.5 mm / 0.138 inches |
|---|---|
| Height | 58.2 mm / 2.291 inches |
| Depth | 39.5 mm / 1.555 inches |
| Weight | 4.2 g |
| Nominal cross-section | 1 mm² |
| Strip length | 9 … 11 mm / 0.35 … 0.43 inches |
| Connection technology | Push-in CAGE CLAMP® |
| Insulation material (main housing) | Polyamide (PA66) |
Manufacturer documentation
