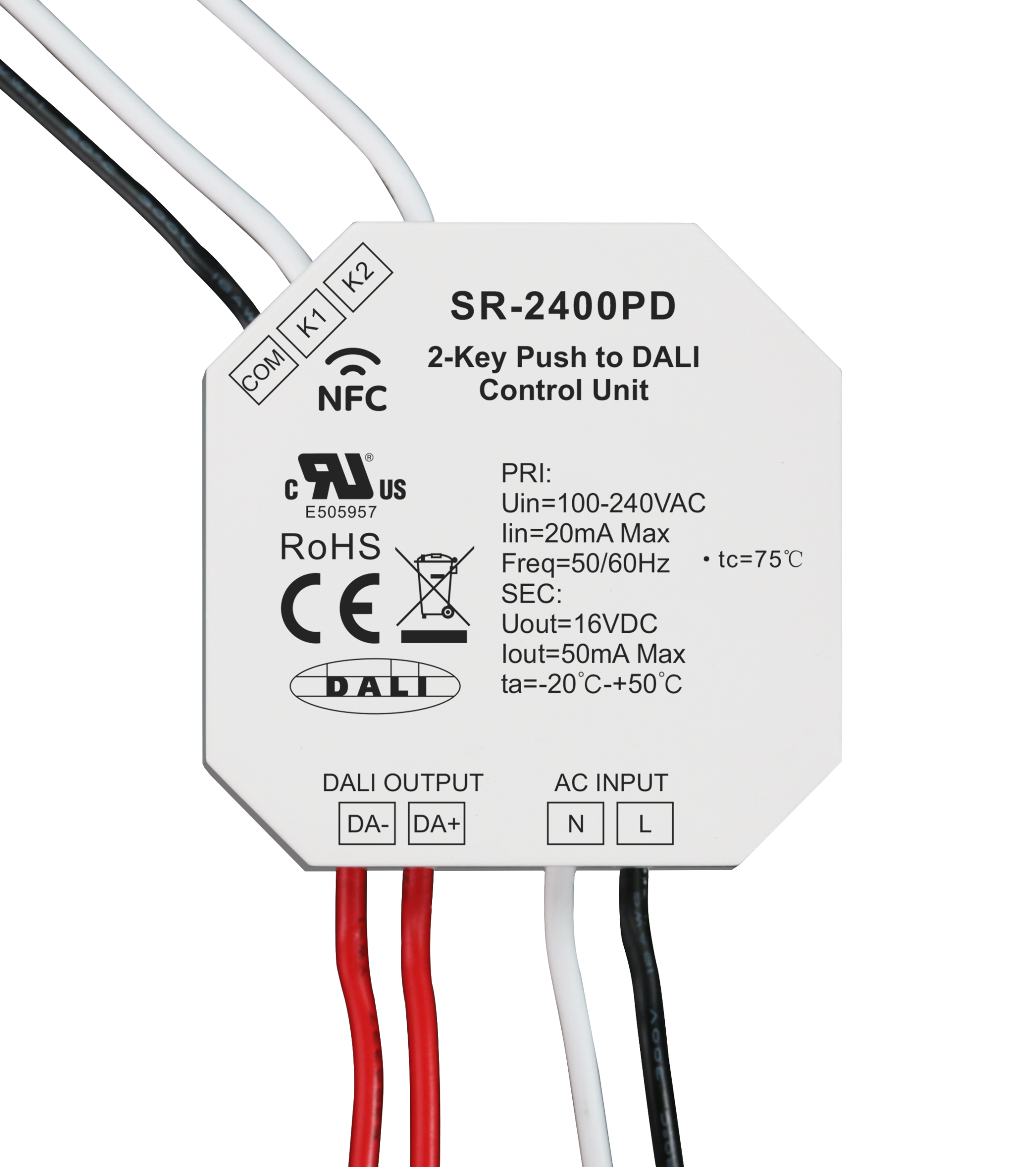

NFC Programmable 2 Key Push to DALI Control Unit SR-2400PD

The SR-2400PD is a push to DALI control unit with 2 inputs for push buttons or dry contact motion sensors. It is set up by phone over NFC.

Connected to 100-240VAC, its built-in 50mA DALI power supply runs up to 25 DALI drivers without a separate DALI controller or power supply. With 4 units on mains, up to 100 drivers can be controlled. It can also run from the DALI bus.

Each button supports short press, long press and double click. In the NFC app you choose the DALI commands and whether it controls all lights, groups or single addresses.

Key Features

• 2 inputs for push buttons or dry contact motion sensors
• Push Dim mode or Corridor Dim mode, set by NFC
• Built-in 50mA DALI power supply for up to 25 drivers
• 100-240VAC powered or DALI bus powered
• Supports DT6, DT8 Tc, DT8 XY and RGBWAF devices
• Broadcast, group or single address control
• Short press, long press and double click per button
• Several units on one DALI line for more control points
• IP20

Typical Applications

Small stand-alone DALI systems where push buttons or simple motion sensors control DALI LED drivers, without a central controller.

Specifications

Part No.: SR-2400PD
Power Supply: 100-240VAC (active) or DALI bus (passive)
Inputs: 2 push switches or dry contact motion sensors
Output: DALI signal, 50mA DALI power
Device Types: DT6, DT8 Tc, DT8 XY, DT8 RGBWAF
DALI Consumption: Less than 4mA

Dimensions (L x W x H): 1.79 x 1.77 x 0.80 in (45.5 x 45 x 20.3 mm)
