NarrowDIM X4 - Universal dimmer actuator, 4 channels x 210W
Zennio

NarrowDIM X4 – Universal dimmer actuator, 4 channels x 210W

,
SKU: ZDINDX4
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

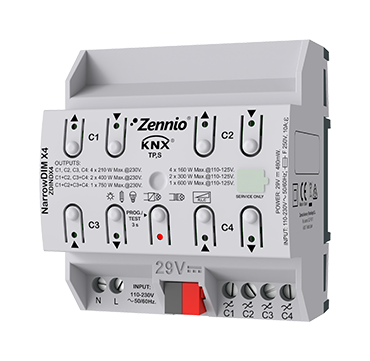

Zennio NarrowDIM X4. Universal dimmer actuator. 4 channels x 210W. 4.5 DIN units.
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (702) 344-6214

NarrowDIM X4 - Universal dimmer actuator, 4 channels x 210W

About this product

Universal dimming actuator (RLC, LED, CFL*) for DIN-rail (4.5 units) with 4 channels for up to 210 W at 230 VAC (160 W at 110 VAC). It allows double channel connection, up to 400 W at 230 VAC (300 W at 110 VAC) and quad channel connection to control up to 750 W at 230 VAC (600 W at 110 VAC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs through the push buttons on the cover.

It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, power failure, parameterization error.

Installation

Most of these devices mount on a DIN rail in the electrical panel; some (inBOX, KLIC, FANinBOX) mount in a flush box or next to the unit they control. The Zennio datasheet shows the details.

UL/DEKRA certified product.

Downloads

More on zennio.com

Delivery 2 to 4 weeks after your order.
