MINiBOX 45 v3 - KNX Secure fan-coil controller for 2-pipe unit, 5 inputs A/D
Zennio

MINiBOX 45 v3 – KNX Secure fan-coil controller for 2-pipe unit, 5 inputs A/D

,
SKU: ZIOMN45V3
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

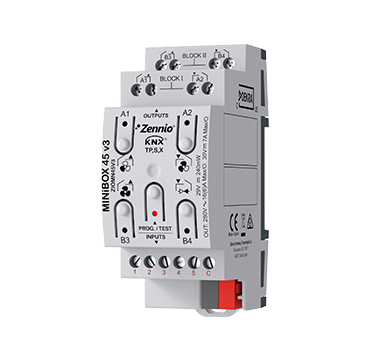

Zennio MINiBOX 45 v3. Fan coil controller with KNX Secure for 2-pipe unit / 5 inputs A/D.
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (702) 344-6214

MINiBOX 45 v3 - KNX Secure fan-coil controller for 2-pipe unit, 5 inputs A/D

About this product

Multifunction actuator for DIN-rail (2 units) with 4 outputs (16 A C-load) which offer multiple configurations as shutter channels or individual outputs or even 2-pipes fan coil controller. It allows manual control of its outputs through the push buttons on the cover and includes a logical function module. It also incorporates 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems. It is compatible with KNX Secure.

Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.

Installation

Most of these devices mount on a DIN rail in the electrical panel; some (inBOX, KLIC, FANinBOX) mount in a flush box or next to the unit they control. The Zennio datasheet shows the details.

UL/DEKRA certified product.

Downloads

More on zennio.com

Delivery 2 to 4 weeks after your order.
