LS990 -Bluetooth® 2 channel
Jung

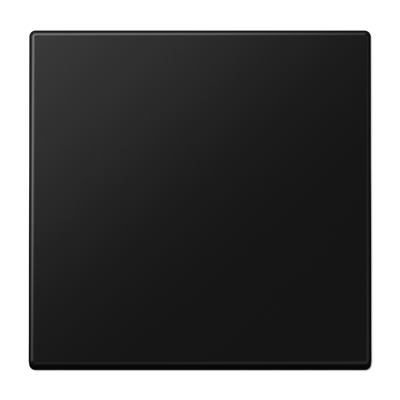

LS990 -Bluetooth® 2 channel

SKU: BLE-LS-990-SWM

2-channel including mounting plate, adhesive pad and fastening screw Smart switch for wireless device control using wireless standard Bluetooth Low Energ…
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (929) 343-6724

LS990 -Bluetooth® 2 channel

2-channel
including mounting plate, adhesive pad and fastening screw
Note: Frame not included

  • Smart switch for wireless device control using wireless standard Bluetooth Low Energy (For
  • switching, dimming and controlling individual light scenes
  • Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass).
  • Battery-free device without external power supply
    Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
  • Encrypted transmission with AES-128 (CBC mode) and sequence counter
  • Compatible with these wireless Bluetooth systems: Casambi, XICATO Controls, Häfele Connect, WiZ Pro, WiSilica, Wirepas, Blu2Light (Vossloh Schwabe), Aruba, Fulham, Helvar
  • Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3
  • Automatic range extension (depending on the system) via BT Mesh devices connected to the mains
Technical data
Radio frequency:2.402 ... 2.480 GHz
Transmission range
in free field:up to 75 m
in buildings:approx. 10 m
Transmitting power:0.4 dBm / 1.1 mW
Ambient temperature:−5 ... +45 °C
Storage/transport temperature:−25 ... +65 °C
Atmospheric humidity:0 ... 95 % (no condensation)
