Lighting Control Enclosure, 5-row

The Siemens Industry Gamma Lighting Control Enclosures support Gamma Lighting system components and other panel-mounted devices that snap into DIN rails.

• Three sizes are available to match installation needs.
• Sturdy construction accommodates secure conduit fittings and protects components against incidental contact and falling dirt.

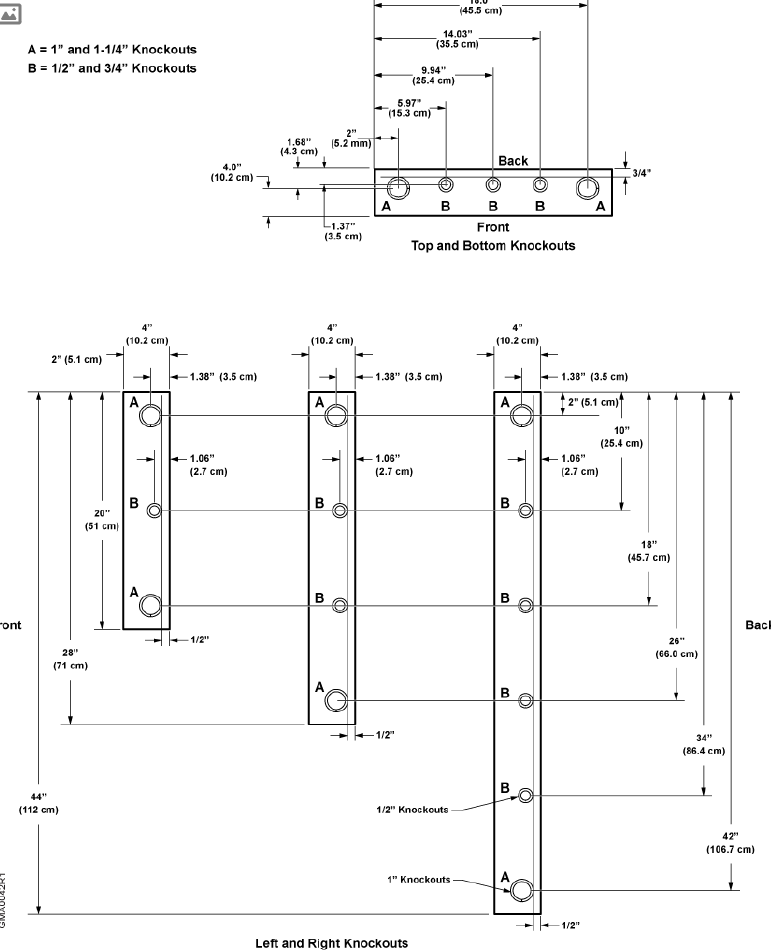

• Multiple knockouts along top, sides and bottom.
• Spacious interior for easy routing and termination of wiring.
• Pre-installed DIN rails (EN607015) for mounting of components. Each DIN rail accommodates 20 MW (Gamma N-system module widths).
• Wire barriers are pre-installed between each set of DIN rails to easily maintain wire separation.
• A Data Rail 190/32 (with integrated connector, 324 mm) (5WG1 190-8AB32), which is sold separately, distributes KNX bus power and communications to 17 module widths (MW) of N-System devices that only have a data rail connector.
• A removable dead front holds a removable/reversible door with a documentation pouch.
• UL and cUL Certified NEMA Type 1 Industrial Control Enclosure.

The following table provides ordering information.
