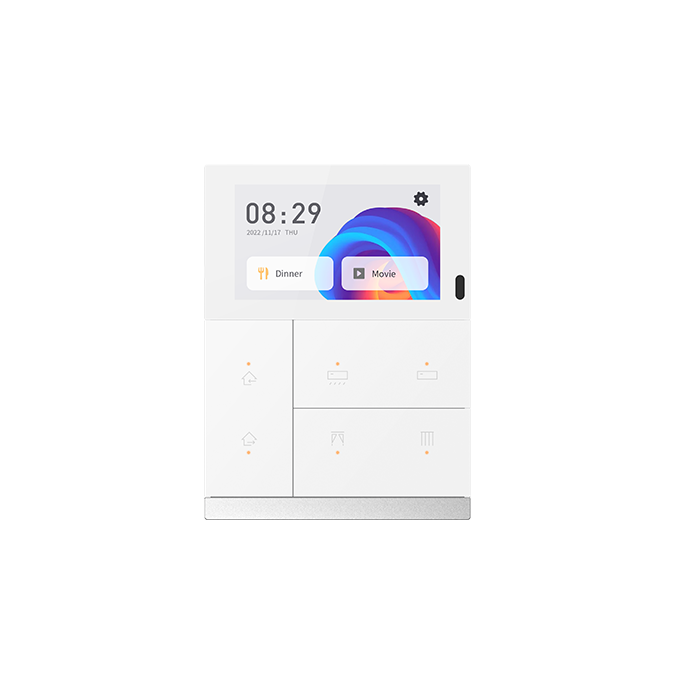

KNX Waltz Touch+ Pad, metal button 3″ Silver

KNX Waltz Touch+ Pad, metal button, Silver

• 3" IPS touch panel, resolution 854*480, Out-of-wall thickness:8mm, replaceable mechanical metal buttons, built-in temperature & humidity & proximity sensor, animation effects on display when buttons operated, alram function, 2-fold input(Binary or NTC 10K Temp. sensor), RGB color LED indicator. Full KNX functions: 6 control pages including switch, dimming, shutter, scene control, value sending, RGB, RGBW, RGBCW, Color Temp. control, HVAC, AC, floor heating, ventilation, audio control, energy metering, air quality display, HVAC controller(6), Max. 8 group event, 8 logic functions. Support icons customization. Support 9 languages(can only set on ETS) Installation: Wall mounted. Fits in Chinese 86*86mm, British 70*70mm, German Round (Ø 68mm), Swiss wall boxes. Power: KNX Bus & Auxiliary; Consumption: bus 4mA & Auxiliary 105mA Color option: Mystical Gray / Celestial Silver / Splendorous Gold / Classical Black

GVS article CHTFB-3.0/6.1.22. Size 115 x 86 x 34.7 mm. Mounts in a European round flush box (Kaiser, 60 mm screw spacing).

Manual and ETS application: GVS product page.

Downloads: GVS manual (PDF), ETS application for KNX programming (ZIP)
