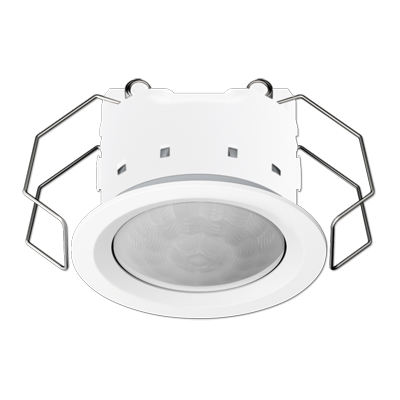

KNX brightness controller mini-2096 LUX-01

with integrated BCU
ETS product family: Physical sensors

Product type: Brightness

Intended use

• Measurement and control of lighting indoors or in protected outdoor area
• Clamp mounting in suspended ceilings
• Ceiling installation on fixed ceilings in appliance box according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-WW)
• Surface-mounted ceiling installation with the surface mounting set (ref.-no.: PMM-AP-SET-WW)

Product characteristics

• Asymmetrical measuring surface
• Integrated bus coupling unit
• Integrated brightness sensor
• Brightness sensor function with 3 limiting values
• Brightness limiting values (3 channels) with output functions switching, value transmitter, and scene extension
• Light control with max. 3 channels, setpoint shift in operation, the separate configuration of dimming-up, control and dimming-down phase
• On-off control possible for switch actuators
• Power supply via bus voltage
