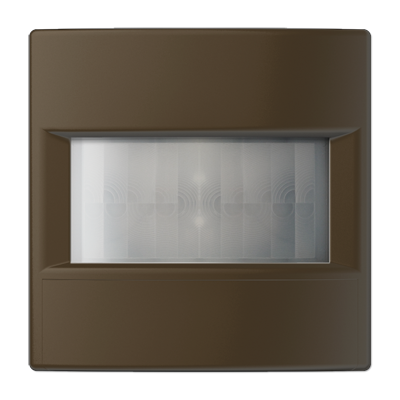

KNX automatic switch 1.1 m-LS Range-LS 3181-1-01

Universal
for bus coupling unit 3 ref.-no.: 2073 U-01
ETS product family: Physical sensors
Product type: Movement

Intended use

• Requirement-oriented control of lighting and other electrical loads in interior rooms
• Mounting on bus coupling unit 3 (ref.-no.: 2073 U-01)

Product characteristics

• Automatic switching of lighting depending on the thermal movement and ambient brightness
• 2 PIR sensors
• Detection range 180°
• Integrated brightness sensor
• Switch-off brightness can be set
• Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
• Extension of the detection area by way of operating several devices as main unit or extension unit
• Sensitivity can be set manually
• Status LEDs
• Manual switching on the device
• Up to half of the detection area can be screened off (cover or parameter setting)

Additional characteristics of "Universal" version:

• Manual operation with IR remote control possible (ref.-no.: KNX PM FB IR)
• 5 function blocks for motion detection each with 2 outputs
• Function blocks switchable, e.g. for day/night operation
• Brightness sensor function with 3 limiting values
• Alarm message in case the device is removed from the bus coupling unit
• Temperature measurement
