inBOX 24 v3 - Flush-mounted actuator, 2 outputs 16A/4 inputs A/D
Zennio

inBOX 24 v3 – Flush-mounted actuator, 2 outputs 16A/4 inputs A/D

,
SKU: ZIOIB24V3
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

Zennio inBOX 24 v3. KNX multifunction actuator for flush mounting, 2 outputs 16A/4 inputs A/D.
Got questions?

Feel free to get in touch

Ask an expert!
Video chat Chat Email +1 (702) 344-6214

inBOX 24 v3 - Flush-mounted actuator, 2 outputs 16A/4 inputs A/D

About this product

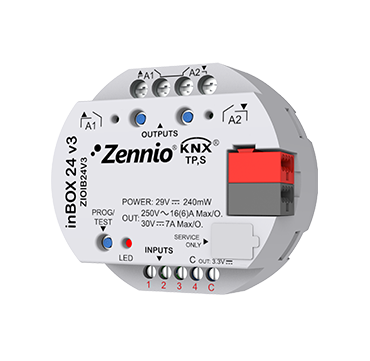

Multifunction actuator for flush mounting with 2 outputs (16 A C-Load) which offer multiple configurations as shutter channel or individual outputs. It allows manual control of its outputs and includes 4 thermostats, 10 independent logical functions and Master-Light function. In addition, it incorporates 4 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs.

Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.

Installation

Most of these devices mount on a DIN rail in the electrical panel; some (inBOX, KLIC, FANinBOX) mount in a flush box or next to the unit they control. The Zennio datasheet shows the details.

UL/DEKRA certified product.

Downloads

More on zennio.com

Delivery 2 to 4 weeks after your order.
