DALI BOX Broadcast 4CH v2 – KNX-DALI broadcast interface, 4 channels
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.

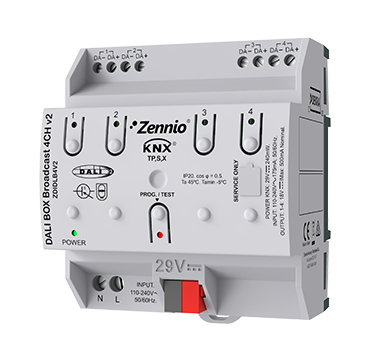

Zennio DALI BOX Broadcast 4CH v2. KNX-DALI Broadcast Interface to control up to 250 ballasts in 4 channels.
Got questions?
Feel free to get in touch
Ask an expert!
DALI BOX Broadcast 4CH v2 - KNX-DALI broadcast interface, 4 channels
About this product
KNX-DALI broadcast interface module for DIN rail mounting (4.5 units). It incorporates 4 channels controlled via broadcast commands, including color ballasts (DT8). It allows to connect up to 250 ballasts per device, and they can be associated as whished with up to 64 ballasts per channel. In addition, it allows the configuration of 20 scenes/sequences per channel. It is compatible with KNX Secure. It enables manual control and has LED status indicators per channel.
Compatible with energy monitoring (DT51, part 252).
Installation
Most of these devices mount on a DIN rail in the electrical panel; some (inBOX, KLIC, FANinBOX) mount in a flush box or next to the unit they control. The Zennio datasheet shows the details.
UL/DEKRA certified product.
Downloads
Delivery 2 to 4 weeks after your order.
