ALLinBOX 88 v2 – KNX power supply, KNX-IP interface, 8 outputs/8 inputs and logic module
U.S. safety certified. This product is certified to applicable U.S. safety standards by an OSHA-recognized testing laboratory (NRTL), such as UL, Intertek (ETL), CSA, or DEKRA. Installation must follow the product's listing, manufacturer instructions, and local codes, subject to approval by the local Authority Having Jurisdiction (AHJ).KNX. This product works with KNX, the worldwide open standard for home and building automation (ISO/IEC 14543-3). KNX devices from different manufacturers work together and are set up by a KNX partner with the ETS software.
Zennio ALLinBOX 88 v2. Multifunction device with KNX power supply, KNX-IP Interface, 8 outputs/8 inputs and logic module.
Got questions?
Feel free to get in touch
Ask an expert!

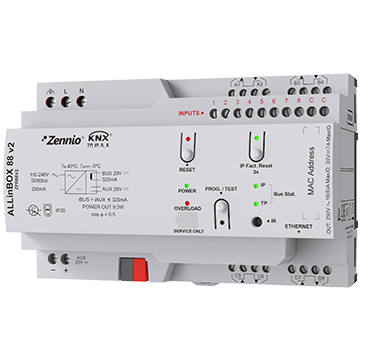

ALLinBOX 88 v2 - KNX power supply, KNX-IP interface, 8 outputs/8 inputs and logic module
About this product
The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 320 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 8 analog/digital inputs and 8 relay outputs (16 A C-Load) in only 8 DIN rail units.
It offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes).
It is compatible with KNX Secure.
Installation
Most of these devices mount on a DIN rail in the electrical panel; some (inBOX, KLIC, FANinBOX) mount in a flush box or next to the unit they control. The Zennio datasheet shows the details.
UL/DEKRA certified product.
Downloads
Delivery 2 to 4 weeks after your order.
