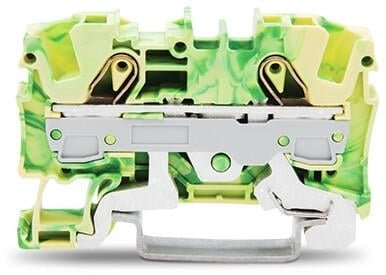

TOPJOB®S ground terminal block; rail mount; 2-conductor; 7.5 mm wide; green-yellow - Image 2
TOPJOB®S ground terminal block; rail mount; 2-conductor; 7.5 mm wide; green-yellow - Image 3
WAGO

TOPJOB®S ground terminal block; rail mount; 2-conductor; 7.5 mm wide; green-yellow

SKU: 2006-1207 Category: , , Rate Now

2006-1207 TOPJOB®S ground terminal block; rail mount; 2-conductor; 7.5 mm wide; green-yellow

Description

Electrical data
IEC Approvals
Ratings perIEC/EN 60947-7-2
Connection data
Connection technologyPush-in CAGE CLAMP®
Actuation typePush-in
Open Tool Slot
Connectable conductor materialsCopper
Nominal cross-section6 mm²
Solid conductor0.5 … 10 mm² / 20 … 8 AWG
Solid conductor; push-in termination2.5 … 10 mm² / 14 … 8 AWG
Fine-stranded conductor0.5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor; with insulated ferrule0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor; with ferrule; push-in termination2.5 … 6 mm² / 16 … 10 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length13 … 15 mm / 0.51 … 0.59 inch
Total number of connection points2
Total number of potentials1
Number of levels1
Wiring typeFront-entry wiring
Number of jumper slots2

More

Physical data
Width7.5 mm / 0.295 inch
Height57.5 mm / 2.264 inch
Depth from upper edge of DIN-rail32.9 mm / 1.295 inch
Mechanical data
Designhorizontal type
Mounting typeDIN-35 rail
Marking levelCenter/side marking
Material data
Colorgreen-yellow
Insulation materialPolyamide (PA66)
Fire load0.15 MJ
Weight17.2 g
Commercial data
Product Group22 (TOPJOB S)
Packaging typeBOX
Country of originDE
GTIN4017332999670
Customs tariff number8536904000
