Multilevel installation terminal block

SKU: 2003-7645 Category: , , Rate Now

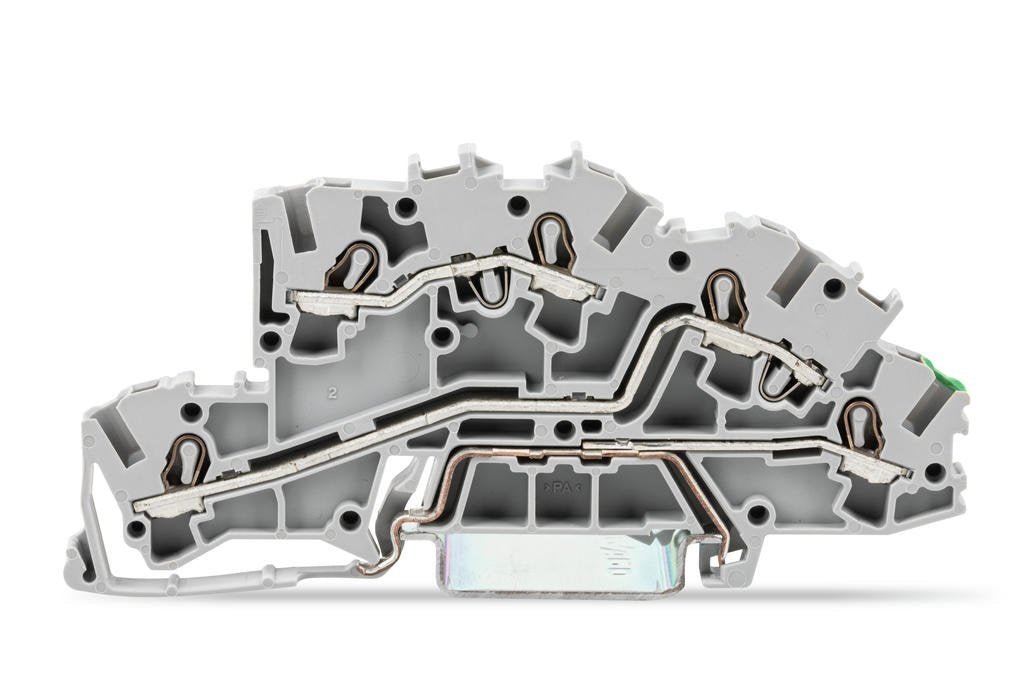

Multilevel installation terminal block; with operating slots; 2.5 mm²; L/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray

Description

Electrical data
IEC Approvals
Ratings (note)Potential – ground
Rated voltage (III / 3)250 V
Rated surge voltage (III/3)4 kV
Rated current24 A
Ratings (note) 2Potential – potential
Rated voltage (III/3) 2400 V
Rated surge voltage (III/3) 26 kV
Rated current 232 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3

Less

Connection data
Connection technologyPush-in CAGE CLAMP®
Actuation typePush-in
Open Tool Slot
Connectable conductor materialsCopper
Nominal cross-section2.5 mm²
Solid conductor0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length10 … 12 mm / 0.39 … 0.47 inch
Total number of connection points5
Total number of potentials3
Number of levels3
Wiring typeFront-entry wiring

Less

Physical data

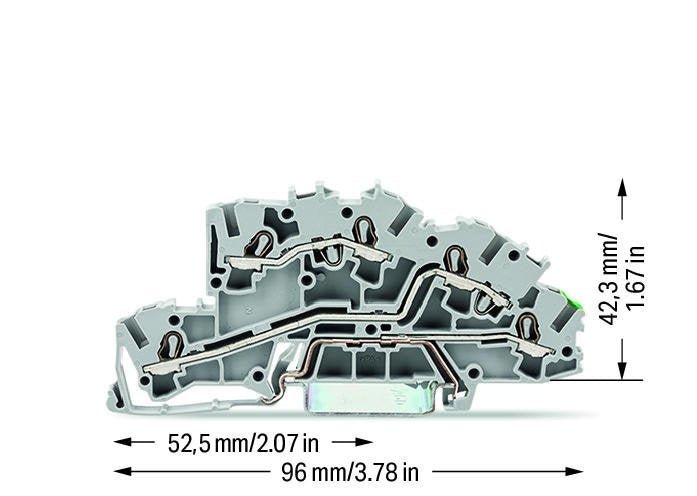

Width5.2 mm / 0.205 inch
Height96 mm / 3.78 inch
Depth from upper edge of DIN-rail42.3 mm / 1.665 inch
Mechanical data
Potential markingL/L/PE
Designangled
Mounting typeDIN-35 rail
Marking levelCenter/side marking
Material data
Colorgray
Insulation materialPolyamide (PA66)
Fire load0.245 MJ
Weight16.3 g
Commercial data
Product Group22 (TOPJOB S)
Packaging typeBOX
Country of originDE
GTIN4044918925600
Customs tariff number8536904000
