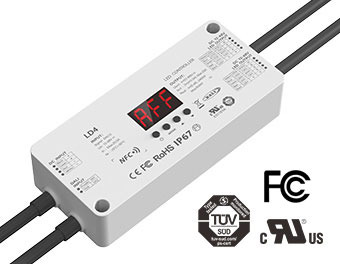

LTECH LD4 DALI NFC Low-voltage waterproof controller
Description
DALI NFC Low-voltage waterproof controller. 5 years warranty. UL certification declared by LTECH. IP67.
Product details
| Model | LD4 |
|---|---|
| Manufacturer | LTECH |
| Product family | Waterproof Controller |
| Product dimensions | 164 × 70 × 36 mm |
| Package dimensions | 230 × 95 × 47 mm |
| Product weight | 670 g |
| Warranty | 5 years |
| Safety certification | UL, manufacturer-declared |
| Units per carton | 12 |
| Carton dimensions | 415 × 230 × 165 cm (as quoted; unit requires confirmation) |
Technical specifications
Input Signal：DALI 2
Input Voltage：12-48V
Input Current：Max.20.5A
Output Voltage：4×(12-48)V
Output Current：2×(4CH×2.5A) Max.20A
Output Power：4CH×(0-60...240)W Max. 960W
Working Temp.：-20℃-50℃
Waterproof Rating：IP67
Protection：Short-circuit protection, over-temperature protection, over-current
protection, self-recoverable
Parameter Settings:
1.NFC configures full DALI command parameters such as DALI address, dimming curve,
brightness range, dimming fade time, power-on state, system failure state, group, and
scene. It also supports product fault diagnosis and parameter restoration/replacement.
2.Button configures DALI address
3.Third-party standard DALI system configuration
