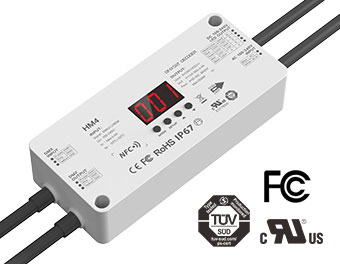

LTECH HM4 DMX512/RDM NFC High-voltage waterproof controller
Description
DMX512/RDM NFC High-voltage waterproof controller. 5 years warranty. UL certification declared by LTECH. IP67.
Product details
| Model | HM4 |
|---|---|
| Manufacturer | LTECH |
| Product family | Waterproof Controller |
| Product dimensions | 164 × 70 × 36 mm |
| Package dimensions | 230 × 95 × 47 mm |
| Product weight | 670 g |
| Warranty | 5 years |
| Safety certification | UL, manufacturer-declared |
| Units per carton | 12 |
| Carton dimensions | 415 × 230 × 165 cm (as quoted; unit requires confirmation) |
Technical specifications
Input Signal：DMX512,RDM
Input Voltage：100-240V
Input Current：Max.6.4A
Output Voltage：4×(100-240)V
Output Current：4CH×1.6A,Max6.4A
Output Power：4CH×(0-160...384)W Max. 1536W
Working Temp.：-25℃-50℃
Waterproof Rating：IP67
Protection：Short-circuit protection, over-temperature protection, over-current
protection, self-recoverable
Parameter Settings:
1.DMX Decoding Mode: DMX Address, 8-bit/16-bit Resolution, PWM Frequency, Fade
Time, Dimming Mode, Display Time
2.DMX Master Mode: Lighting Effects (33 types available), Speed, Brightness, Display
Time
Three configuration methods are supported: NFC, RDM, and Button. After proper
installation, parameters can be uniformly written and viewed via RDM, which also
supports RDM firmware updates.
