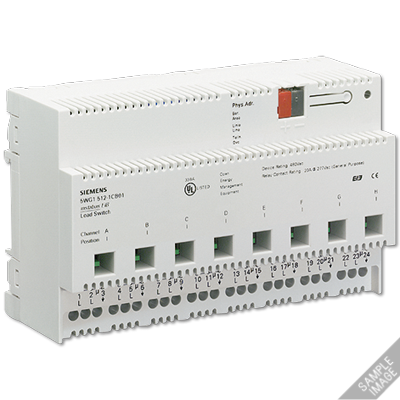

N 512C01 – KNX Load switch, 8 x AC 120 V / AC 277 V / AC 347 V‚ 20 A, C load (cUL listed)

Description

DIN-rail mounted device for the KNX lighting control panel
eight outputs to switch eight separate groups of electric devices
provided by bus (no additional power supply necessary)
The outputs may be operated manually via slide switches.
Maximum loads per output
20 A @ 347 Vac (General Purpose)
20 A @ 347 Vac Ballast (200μF max.)
20 A @ 277 Vac (General Purpose)
20 A @ 277 Vac Ballast (200μF max.)
1,5 HP @ 120 Vac
3 HP @ 277 Vac
