Installation terminal block-Red

SKU: 2000-1303 Category: , , Rate Now

2000-1303 TOPJOB®S feedthrough terminal block; rail mount; 3-conductor; 3.5 mm wide; red

Description

Electrical data
IEC Approvals
Ratings perIEC/EN 60947-7-1
Rated voltage (III / 3)800 V
Rated surge voltage (III/3)8 kV
Rated current13.5 A
Rated current 217.5 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3

More

UL Approvals
Approvals perUL 1059
Rated voltage UL (Use Group B)600 V
Rated current UL (Use Group B)15 A
Rated voltage UL (Use Group C)600 V
Rated current UL (Use Group C)15 A
CSA Approvals
Approvals perC22.2 No 158
Rated voltage CSA (Use Group B)600 V
Rated current CSA (Use Group B)10 A
Rated voltage CSA (Use Group C)600 V
Rated current CSA (Use Group C)10 A
Ex information
Ratings perATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)
Rated voltage EN (Ex e II)550 V
Rated current (Ex e II)13 A
Rated current (Ex e II) with jumper12 A
Connection data
Connection technologyPush-in CAGE CLAMP®
Actuation typePush-in
Open Tool Slot
Connectable conductor materialsCopper
Nominal cross-section1 mm²
Solid conductor0.14 … 1.5 mm² / 24 … 16 AWG
Solid conductor; push-in termination0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor0.14 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor; with insulated ferrule0.14 … 0.75 mm² / 24 … 18 AWG
Fine-stranded conductor; with ferrule; push-in termination0.5 … 0.75 mm² / 20 … 18 AWG
Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length9 … 11 mm / 0.35 … 0.43 inch
Total number of connection points3
Total number of potentials1
Number of levels1
Wiring typeFront-entry wiring
Number of jumper slots2

More

Physical data

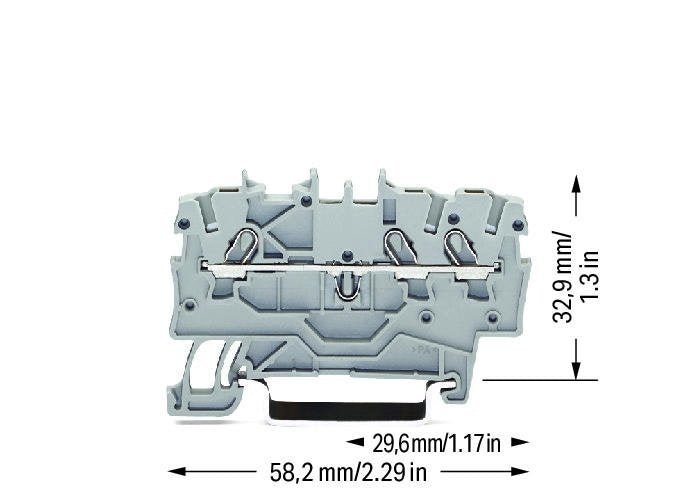

Width3.5 mm / 0.138 inch
Height58.2 mm / 2.291 inch
Depth from upper edge of DIN-rail32.9 mm / 1.295 inch
Mechanical data
Designhorizontal type
Mounting typeDIN-35 rail
Marking levelCenter/side marking
Material data
Colorred
Insulation materialPolyamide (PA66)
Fire load0.092 MJ
Weight4.3 g
Commercial data
Product Group22 (TOPJOB S)
Packaging typeBOX
Country of originCN
GTIN4045454966867
Customs tariff number8536904000
