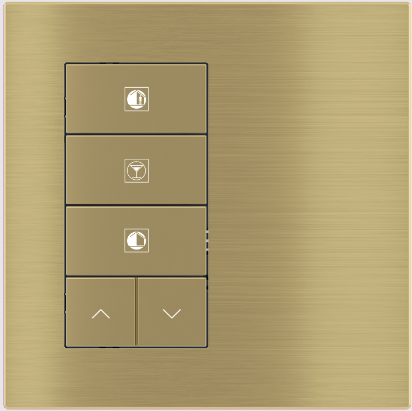

5-fold pushbutton with backlit text/symbols and proximity sensor

The Ekinex® 20venti series 5-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. RGB LED for each rocker. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box.

Technical data

• 30 Vdc power supply by KNX bus
• Current consumption from bus < 17 mA

Delivery

Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

• 3 rectangular 30 x 15 mm plastic rockers with or without backlit text/symbol and 1 rectangular 30 x 15 mm plastic rockers for adjustments
• square plate of the Deep and Surface version with 30 x 60 mm or 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square mounting box (fixing holes 60 mm apart)
