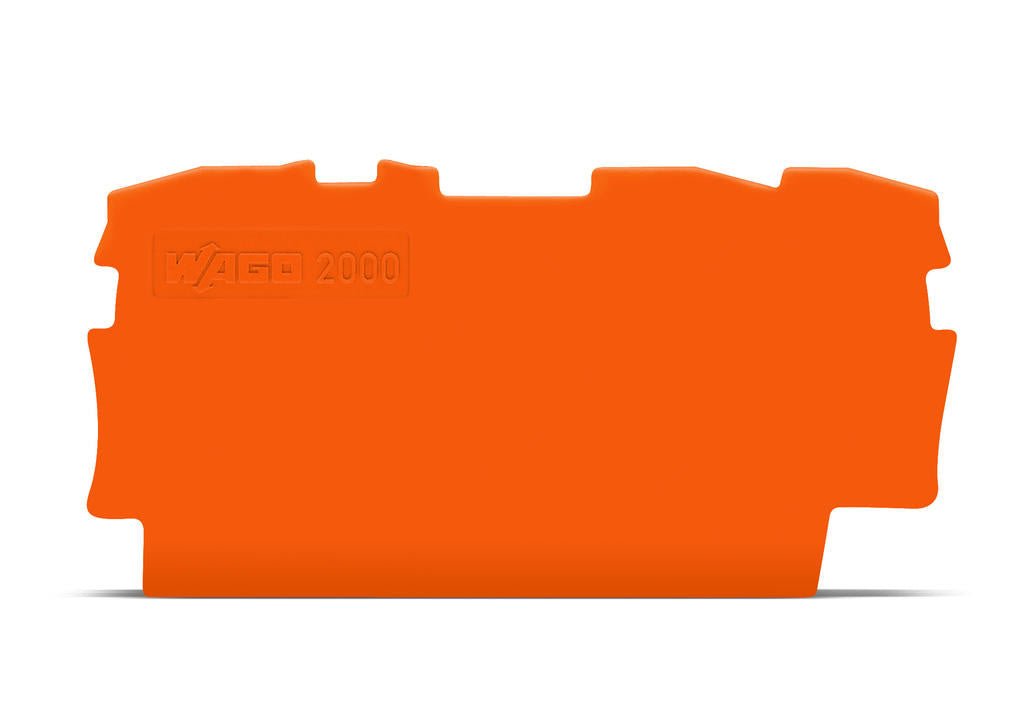

TOPJOB®S end/intermediate plate; for 2000-13xx series terminal blocks
Description
Physical data
| Width | 0.7 mm / 0.028 inch |
| Height | 58.2 mm / 2.291 inch |
| Depth | 33 mm / 1.299 inch |
Material data
| Color | orange |
| Fire load | 0.036 MJ |
| Weight | 1.2 g |
Commercial data
| Product Group | 22 (TOPJOB S) |
| Packaging type | BOX |
| Country of origin | DE |
| GTIN | 4045454711337 |
| Customs tariff number | 8538906000 |
